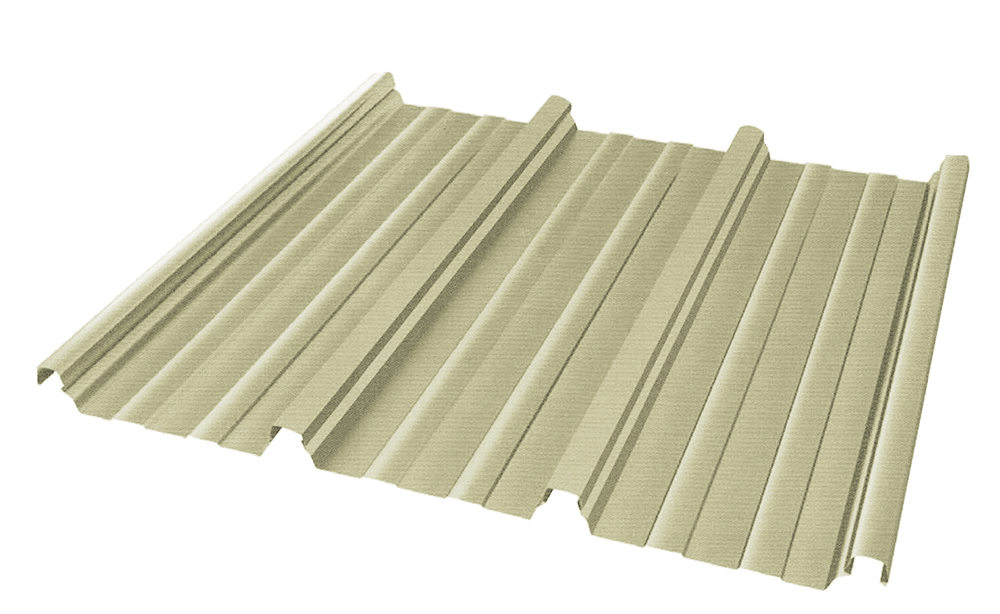

WINCLIP 700

WINCLIP 700

WINCLIP 700 is perfect for roofing applications with longer span with minimum roof pitch of as low as 1°. It is also suitable for installations over 100mm thick of insulation.

The WINCLIP 700 sheets are available on application via our mobile roll forming facilities and length can be custom made on the spot.





WINCLIP 700 - Specifications

Economy
Regular
Heavy
Zincalume
Colorlume
Zincalume
Colorlume
Zincalume
Colorlume
Base Metal Thickness (mm)
0.42
0.48
0.60
Total Coated Thickness (mm)
0.47
0.53
0.65
Mass per Unit Area (kg/m2)
4.54
4.60
5.12
5.20
6.33
6.45
Mass per Unit Length (kg/m)
3.15
3.20
3.60
3.65
4.45
4.50
Coverage (m2/tonne)
220
217
195
192
158
155


Maximum Supported Spacing

Base Metal Thickness (mm)
Total Coated Thickness
(mm)
Roof
Wall
Free Cantilever (mm)
Single Span (mm)
End Span (mm)
Internal Span (mm)
Single Span (mm)
End Span (mm)
Internal Span (mm)
0.42
0.47
1500
1500
1800
1900
1900
2200
250
0.48
0.53
1600
1600
2000
2200
2200
2400
300
0.60
0.65
2000
2000
2200
2300
2300
2600
350

Side Lap
